Tamiya 58690 1/10 R/C LANDFREEDER QUADTRACK (TT-02FT)
| On the Right Track This assembly kit creates an R/C model off-road truck which shows high performance on poor surfaces. Its chassis is based upon the TT-02 shaft-driven 4WD unit, with superlative traction from its four individual tracks that helps it plow through snow, sand, mud and other testing conditions. Its 1980s pick-up truck style body is molded in polycarbonate, with fog lamps, grille guard and roll bar recreated using separate metal-plated parts. A polycarbonate chassis cover and wheel well liners help prevent dirt and the like from getting into the chassis and potentially causing damage. |
| Tracked 4WD Fun: the TT-02FT Chassis The TT-02FT chassis uses the shaft-driven TT-02 as a base, with track units in place of the four wheels. Each of the track units is attached to upper and lower suspension arms, and is powered via a drive sprocket that attached to the chassis drive shaft; they swing to allow superior contact with the running surface, and feature a sprung roller to allow easier negotiation of smaller obstacles. Plenty of ground clearance is on offer, too. Tracks are a plastic assembly type design with metal link pins, and give minimal power loss from friction for a smooth drive, even at lower speeds. Two types of link are included in the kit - standard, and jutting grouser designs - and can be used in tandem to customize your model's grip. The chassis features a CR-Tuned motor as standard. |

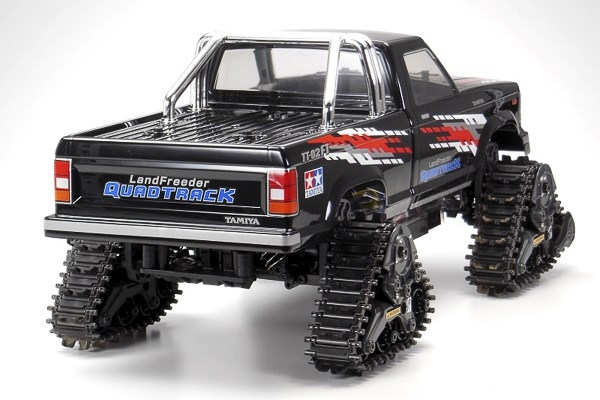

 ★This image from the rear shows how the 1980s-inspired truck body and quadruple tracks make for a great look. |
 |

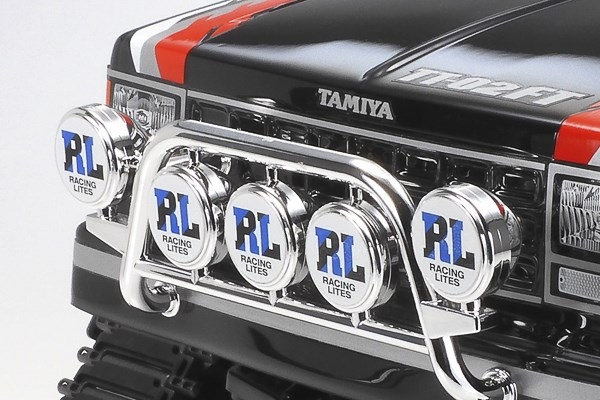

 ★Chrome-plated components for the front bull bars and fog lamps ensure that the model has superb realism. |
|

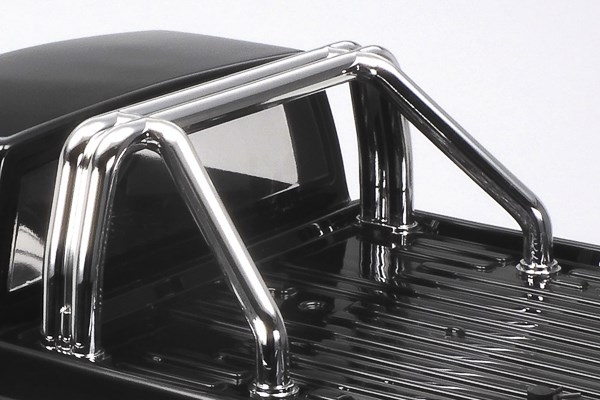

 ★Moving around behind the cab, we can see that the roll bar is also a metal-plated part. |

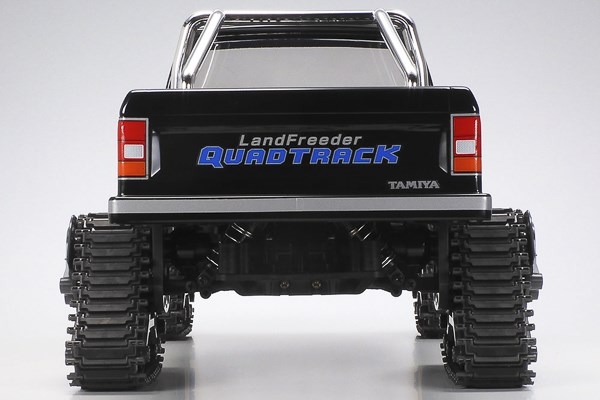

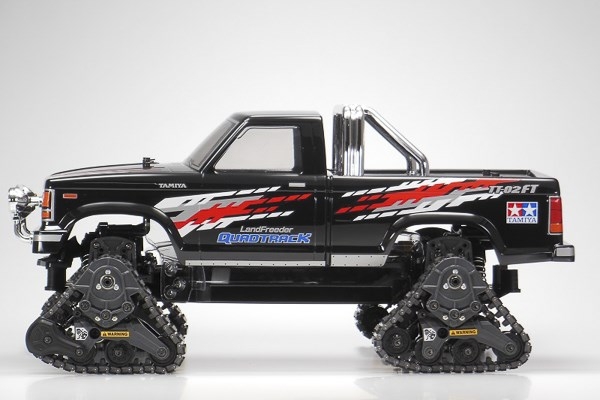

 ★Take a look at the Landfreeder Quadtrack's plentiful ground clearance, which helps it take on rough surfaces. |
|

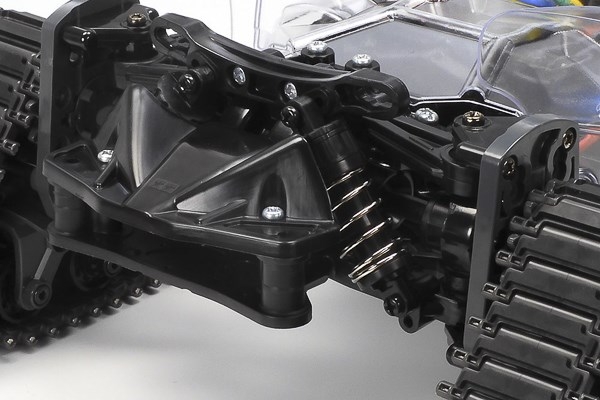

 ★The front double wishbone suspension features friction dampers to help cushion your ride. |
|

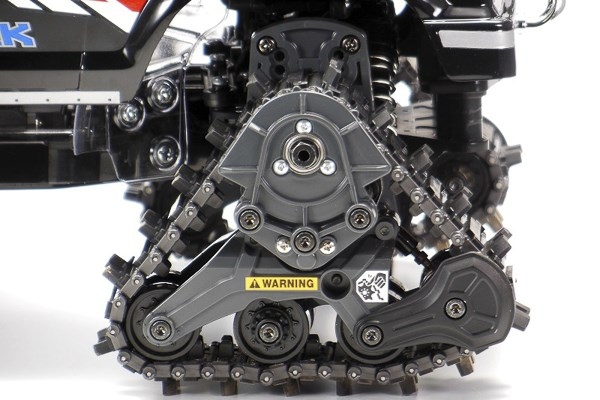

 ★Track units are attached to the chassis drive shaft via a drive sprocket, and use eight individual rollers. |
 ★Track units can also swing to help them maintain contact with the surface and give your model vital grip. |
|
 ★The third roller in each track unit is sprung, allowing the unit as a whole to adapt to obstacles underfoot. |
|
 ★Balanced shaft-driven 4WD is on offer thanks to the chassis' TT-02 base, with track units in place of tires. |
 ★A polycarbonate chassis cover with wheel well liners helps prevent dirt and dust from getting inside. |
|
 ★The rear double wishbone suspension also features friction dampers to help cushion your ride. |
|

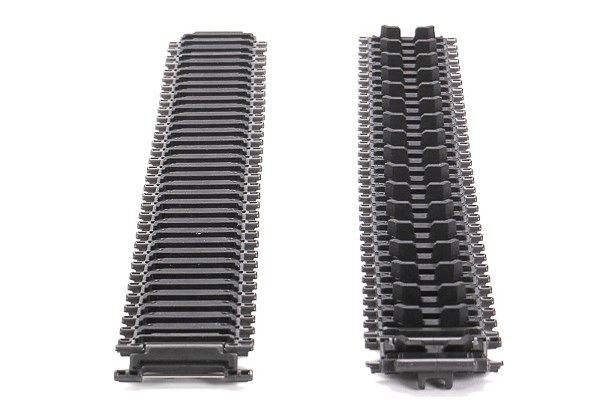

 ★2 link types are included - grouser and standard. Use them in the patterns shown for varying grip levels. |
| Specifications ★Length: 425mm, width: 247mm, height: 199mm ★Wheelbase: 251mm ★Surface contact: 60mm/track ★Track width: 39mm ★Bathtub-type frame ★Shaft-driven 4WD ★Front/rear 4-bevel resin differentials ★3-piece steering tie-rod ★4-wheel double wishbone suspension ★Front/rear friction dampers ★Gear Ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions) ★CR-Tuned motor ★Electronic Speed Controller (ESC) is sold separately. |
| Separately Required Items ★2-channel R/C system w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger |
Information is current as of June 29, 2021. Specifications are subject to change without notice.
