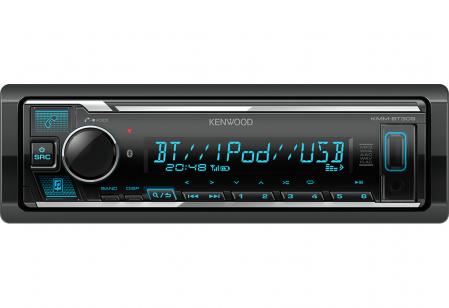

Kenwood KMM-BT309
Beskrivning
- USB, Bluetooth (med två enheter samtidigt) och AUX
- Tidskompensering, 13 bands EQ och 3-vägs crossover-läge
- Kort chassi
- Variabel knapp- och skärmfärg
- Spotify & Amazon Alexa ready
Spela upp musiken på ditt sätt
Via Bluetooth kan du både streama lagrad musik samt använda dig av streamingtjänster som Spotify, Deezer, Tidal och Apple Music. Du spelar musik lika väl från AUX som genom USB som du hittar på enhetens framsida. Där kan du spela din lagrade musik och på samma gång underhållsladda din telefon! Du kan även ansluta två telefoner via bluetooth samtidigt, som du sedan snabbt och smidigt kan switcha mellan genom en enkel knapptryckning på enheten.
Ljud på dina villkor
Tidskompensering, 13-bands EQ och ett 3-vägs crossover-läge är ett krav om du vill få till det perfekta ljudet i bilen. Justera det efter dina önskemål! 3 par lågnivåutgångar med en utnivå på 3,5 volt ger stora möjligheter att få till ett bra billjud. En riktigt bra grund för att du ska kunna bygga vidare på sitt ljudsystem!
Det är små detaljerna som räknas
Ett kort och kompakt chassi gör stereon till en riktig fröjd att installera! Den här stereon är full av genomtänkta detaljer. KMM-BT309 kommer även med en löstagbar front, samt att det går att byta färg på de frontbelysta knapparna för matcha instrumentbrädans färgschema.
DISPLAY FEATURES
| Display Type | Liquid Crystal Display (LCD) |
| Display Layout | 2 line text + custom icons |
| Vertical Aligment Liquid Crystal Display | Yes |
| Display Illumination | Variable by RGB LED |
| Dimmer Control | Manual / Set by Timer |
| Brightness control | 0 - 31 steps |
| Demo Mode | Yes |
| Menu text in selectable language | English(default) / Spanish / French / German / Russian |
COSMETICS FEATURES
| Dress plate | Piano Black |
| Preset key finish | Piano Black |
| Escutcheon finish | Piano Black |
| Volume & operation knob or wheel | Transparant Lighting & Chrome Finished Ring |
| Triangle Illumination | Red LED |
| Front terminals dust cover | Yes |
| Key illumination | Variable by RGB LED |
| Illuminated front USB port | Variable by RGB LED |
| Brightness Control (Key) | 0 - 31 step |
| Dimmer Control (Key) | Manual / Set by Timer |
| Variable color illumination | Yes |
| Color Zone Concept | 2 zone colour control |
| Brightness zone concept | 2 zone brightness control |
| Chrome-finished accents | Volume knod & faceplate |
TUNER FEATURES
| Station Select | Manual / Preset |
| FM Reception | Yes |
| AM (MW/LW) Reception | Yes |
| Tuner Presets (FM/AM) | 24 Presets (18FM / 6AM) |
| Preset memory w/o back-up power | Yes |
| Mixed preset memory (FM & AM) | 6 presets |
| Up/Down Seek/Scan | Yes |
| Automatic Memory Entry (AME) | Yes |
| FM Stereo / Mono Selector | Yes |
| Radio Data System | Yes |
| Radio Text Plus | Yes |
| Traffic Information | Yes |
| Local search | Yes |
| AF Regional | Selectable: AF/AF Reg/OFF |
| Auto TP search | Yes |
| Enhanced Other Networks Function (EON) | Yes |
| Program Type Function (PTY) | Yes |
PLAYABLE AUDIO FILE
USB FEATURES
| USB terminal | Yes, Front with dust cover |
| USB Type | 2.0 High speed |
| MP3, WMA, AAC, WAV, FLAC playback | Yes |
| Repeat/Scan/Random search | Yes |
| Repeat / Random Play | Yes |
| Direct search | Yes |
| Resume play | Yes |
| Time code display | Yes |
| 1,5A Smartphone Quick Charge | Yes |
IPOD FEATURES
| Made for iPod & iPhone * | Yes |
| USB Direct Control (Audio, 1 wire, Lightning-connector) | with optional cable KCA-iP103 |
| Music playback | Yes |
| Alphabet search | Yes |
| Skip search | Yes |
| Related search | Yes |
| Direct Search | Yes |
| iPod EQ Mode | Yes |
| Control by hand | Yes |
| App & iPod control mode | Yes |
| Spotify App Link | Yes |
| iAP over Bluetooth | Yes |
| iTunes Radio App | yes iAP2 |
| Reverse browsing | Yes |
| Battery charge + power control | Yes |
| * Always update to latest Apple firmware |
AUDIO FEATURES
| Maximum Output Power | 50W x 4 |
| MOSFET Power IC | Yes |
| Auxiliary Type | Mini-jack, front panel |
| Pre-out | 3 RCA |
| Pre-out Output Level | 2.5V |
| Subwoofer Reference Level Adj. | Yes |
| 2-Way X'over network | Yes |
| 3-Way x'over (bi-amp connection) | Yes |
| Tone Control / Easy EQ | 13 band, 8 presets |
| Balance/Fader/Loudness Control | Yes |
| Bass Boost Circuit | Off/+1/+2/+3/+4/+5 |
| Att.(-20dB) with smooth Volume Return | Yes |
| Easy 3-band EQ mode | Yes |
| Graphic Equalizer + Preset | 13-Bands Graphic Equalizer with 8 Presets. |
| Digital Sound Processor (DSP) Built-in | Yes |
| Digital Time Aligment (DTA) | Yes |
| Low- & High-pass Filter | Yes |
| Speaker Size Control | Yes, Front/rear/subwoofer independently |
| Kenwood Sound Reconstruction | Yes |
| Sound Reconstruction | Yes |
| Space Enhancer | Yes |
| Realizer | Yes |
| Stage EQ | Yes |
| Drive EQ | Yes |
BLUETOOTH GENERAL FEATURES
| Max num. of regist. phones for HFP & A2DP | 5 phones |
| Hands Free Profile with High Sound Quality | HFP V1.7.1 |
| Max num. of regist. phones for HFP | 5 phones |
| 2 phones fulltime connection | Yes |
| Audio Streaming (A2DP) | Yes |
| High Quality Audio Streaming | SBC/AAC |
| Max num. of regist. units for A2DP | 5 units |
| Serial Port Profile (SPP) | Yes |
| Phonebook Access Profile (PBAP) | Yes |
| iPhone & Android automatic pairing via USB | Yes |
| KENWOOD Remote App Ready | |
| KENWOOD Music Mix Support | Yes |
| Amazon Alexa ready | Yes |
| Catchphone / Call Waiting | Yes |
| Private mode | Yes |
| Alphabet Search (Phonebook) | Yes |
| Noise Canceller | Yes |
| Echo Canceller | Yes |
| Phone device status display | Yes |
| Audio device status display | Yes |
| Signal strength display | Yes |
| Remaining battery display | Yes |
| Bluetooth Paring Indicator | Yes |
| High-quality noise canceling microphone | Rear Wired |
| Bluetooth firmware upgradeable | Yes |
| * depends on phone model/make | & Kenwood unit |

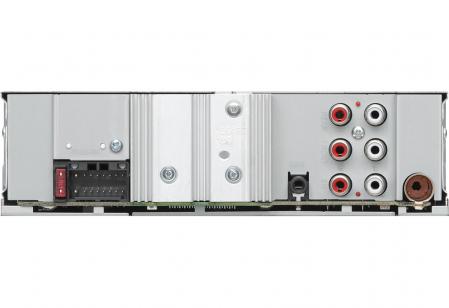

CONNECTIVITY
| Front USB & AUX Input | Yes |
| OEM Wired Remote Control ready | Yes |
| DC-Cord | Mitsumi to ISO |
| Power Control (P.CON) wire | Yes |
| Amplifier pre-out | 3 x RCA: Front/Rear/Subwoofer |
| FM Antenna Input | JASO connector |
| External microphone input | 3,5mm mini-jack |
TUNER SPECIFICATIONS
| FM range: 87.5Mhz - 108MHz (50Khz step) | Yes |
| FM Usable Sensitivity | 0.56μV/75ohm (S/N 30dBf) |
| FM Quieting Sensitivity | 1.58μV/75ohm (S/N 46dBf) |
| FM Frequency Response | 30Hz ~ 15kHz (± 3dB) |
| FM Signal to noise ratio (Mono) | 68dB |
| FM Stereo Separation (1kHz) | 40dB |
| MW range: 531kHz - 1611kHz (9kHz step) | Yes |
| MW Usable Sensitivity | 28.5μV |
| LW range: 153kHz - 279kHz (9kHz step) | Yes |
| LW Usable Sensitivity | 45μV |
CODEC SPECS
| MP3 Format | MPEG 1/2 Audio Layer 3-Files |
| WMA Format | in accordance with Windows Media Audio |
| AAC Format | AAC-LC “.aac”(CD&USB) and ".m4a"(USB) files |
| WAV Format | RIFF waveform Audio Format (only for LinearPCM) |
| FLAC Format | FLAC files (up to 96kHz/24bit) |
USB SPECIFICATIONS
| USB Version compatibility | USB 1.1 / 2.0 full speed |
| File System | FAT 32 / 16 / 12 |
| Maximum Supply current | 1500mA |
| D/A Converter | 24bit |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 |
| WMA Decode | Compliant with Windows Media Audio |
| AAC Decode | "m4a" & "aac" file encoded by AAC-LC format |
| WAV Decode | Linear - PCM Files |
| flac Decode | FLAC files up to 96kHz/24bit |
AUDIO SPECIFICATIONS
| Maximum Power | 50W x 4 |
| Output Power (DIN45324,+B=14.4v) | 22W x 4 |
| Preout Level | 2500mV / 10kOhm, |
| Preout Impedance | ≤ 600Ohm |
| Speaker Impedance | 4Ohm ~ 8Ohm |
| AUX Frequency Response | 20Hz ~ 20kHz (±1dB) |
| AUX Maximum Input Voltage | 1000mV |
| AUX Input Impedance | 30kOhm |
DSP SPECIFICATIONS
| Frequency band - Front | 62.5Hz ~ 16kHz |
| Equalizer Gain | –9db ~ +9db |
| Q Control | 0.25/ 0.50/ 1.00/ 2.00 |
| High Pass Filter frequency | Through/50 ~ 220 (Hz) |
| High Pass Filter Slope | -12/-18/-24 dB/Oct |
| Low Pass Filter frequency | 50 ~ 120(Hz)/Through |
| Low Pass Filter Slope | -12/-18/-24 dB/Oct |
| Time Alignment | 0 — 610cm(2 cm step) |
| Car type control | ► OFF ► COMPACT ► Full SIZE CAR ► WAGON ► MINIVAN ► SUV ► MINIVAN LONG |
| Equalizer Type | Graphic |
| Frequency band | 13 bands |
BLUETOOTH SPECIFICATIONS
| Technology | Bluetooth V4.2 |
| Frequency | 2.402 - 2.48 GHz |
| Output power | +4dBm(max), 0dBm (AVE) power class 2 |
| Maximum range | Line of sight approx. 10 meter |
| Handsfree profile (HFP) | Yes |
| Serial port profile (SPP) | Yes |
| Advanced audio distribution profile (A2DP) | Yes |
| Audio Codec | SBC/AAC |
| Audio/Video remote control profile (AVRCP) | Yes |
| Phonebook access profile (PBAP) | Yes |
ACCESSORIES
| Release keys | 2 pieces |
| Escutcheon | Yes |
| Installation Sleeve | Yes |
| DC cord (Mitsumi to ISO) | 15 cm |
| Handsfree Microphone | with 3 m cable |
GENERAL SPECIFICATIONS
| Operating voltage | 14.4V (10.5 ~ 16V Allowable) |
| Maximum Current Consumption | 10A |
| Dark Current Consumption | Below 1mA |
| Dimensions (WxHxD) | 182 x 53 x 100mm |
| Weight | 600 gr. |
| Operation Temperature Range | -10°C ~ 60°C |
| Instruction Manuals | Multi-language quick Guide |
| DIN Size | 1 DIN |
| Detachable Faceplate | Yes |
| Key Illumination | Variable LED |
| Rotary Encoder & Control Knob | Yes |
| Dual Accent Key | Handsfree & Audio Streaming |
| Back-up Memory | Tuner presets & menu settings |
| Attenuator with Smooth Volume Return | Yes |
| Touch Sensor Tone | Yes |
| Digital Clock (24H) | Yes |
| Clock display when power-off | default off |
| All-off Select (20/40/60 minutes) | Yes |
| Built-in Connector | Mitsumi, 16 pin |
| ISO connector | Yes, Mitsumi to ISO cable |
| Bluetooth unit built-in | Yes |
| USB interface x 1 | Yes, (Front) |
| Firmware upgreadable | Yes |
| Mechless receiver | Yes |
| Short body | Yes |
